When a Property Needs a New Water Line
Installation is a different job from a repair. A repair fixes one damaged section of an existing pipe. An installation puts in a complete new line, usually for one of these reasons:
- New construction: a new home, an accessory dwelling or an addition that needs its own supply
- Outbuildings: a detached garage, shop or barn that needs water run to it
- Retiring an old line: galvanized steel, polybutylene or undersized pipe that keeps failing and is not worth patching again
- Relocating a line: a remodel, driveway, patio or pool that sits over the current route
- Poor flow: a line too small for the fixtures and appliances the house has now
If your current line is leaking, it is worth getting the damage assessed before deciding on a new one. Sometimes fixing a single section is the better value, and our page on water line repair in Albany explains how that decision is usually made.
Choosing the Right Pipe Material
The material you choose affects the cost, how long the line lasts, and how well it copes with the wet winters, dry summers and shifting clay soils of the Willamette Valley.
PEX
Flexible cross-linked polyethylene. It runs long distances with few joints, does not corrode, and tolerates ground movement better than rigid pipe. A common choice for residential service lines.
HDPE Polyethylene
Tough, flexible pipe supplied in long coils. Well suited to longer rural runs and to directional boring, where the pipe is pulled through a bored path instead of an open trench.
Type K Copper
The heavy-wall copper used underground. It has a long track record and handles pressure well, but it costs more and can be affected by aggressive soils.

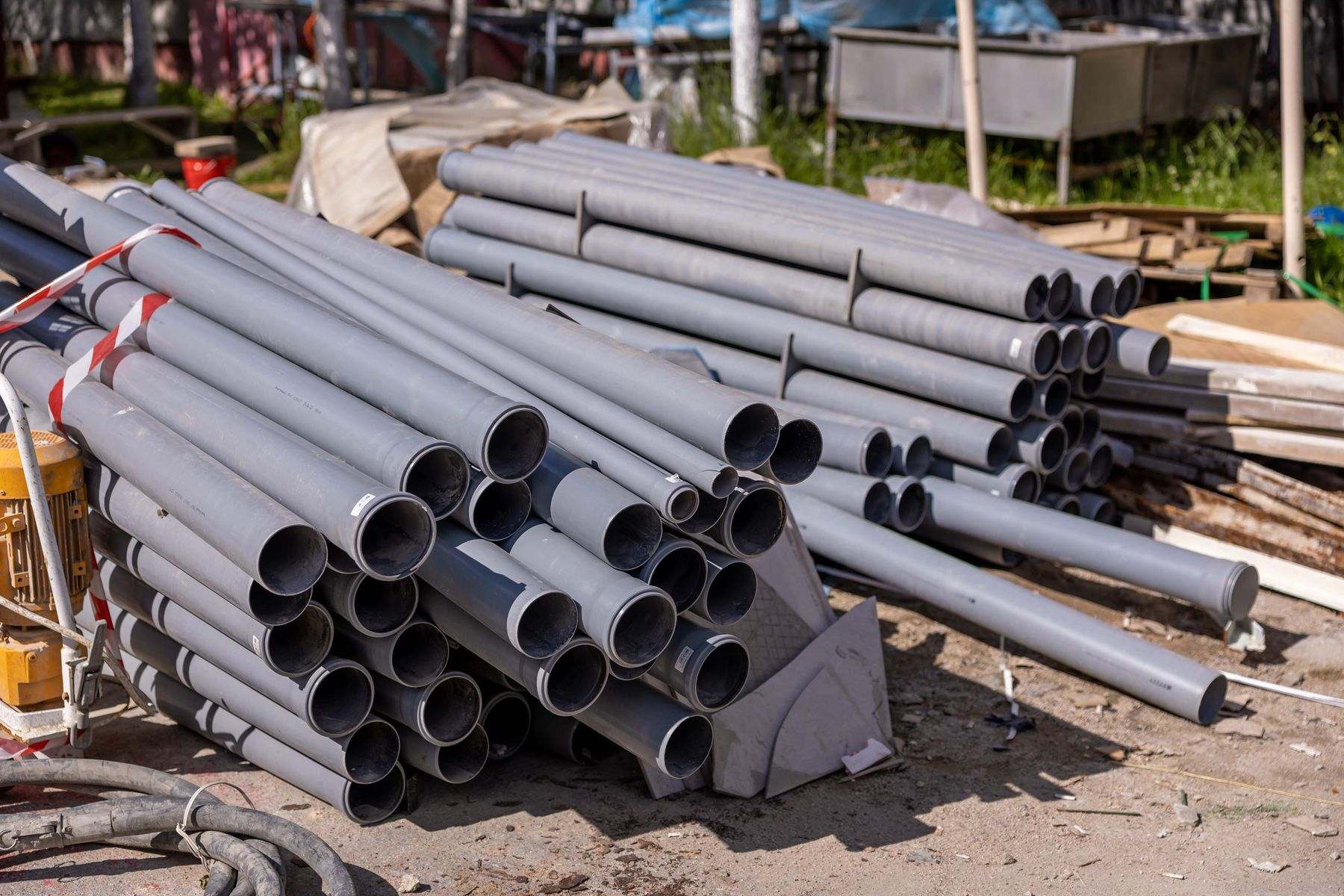

Pressure-Rated PVC
Rigid and inexpensive. It must be rated for pressure and approved for water service where it is used, and it is less forgiving of ground movement than flexible pipe.
We explain which materials are allowed for your job and why we recommend one over another before any work starts.
How a Water Line Installation Works
-
Site visit and route planning
We find the meter, the point where the line will enter the building and the best route between them, noting driveways, trees, patios and other utilities along the way.
-
Utility locate and permit
Oregon requires a utility locate request before digging, and calling 811 is free. The plumbing permit is arranged with the building department that covers your address.
-

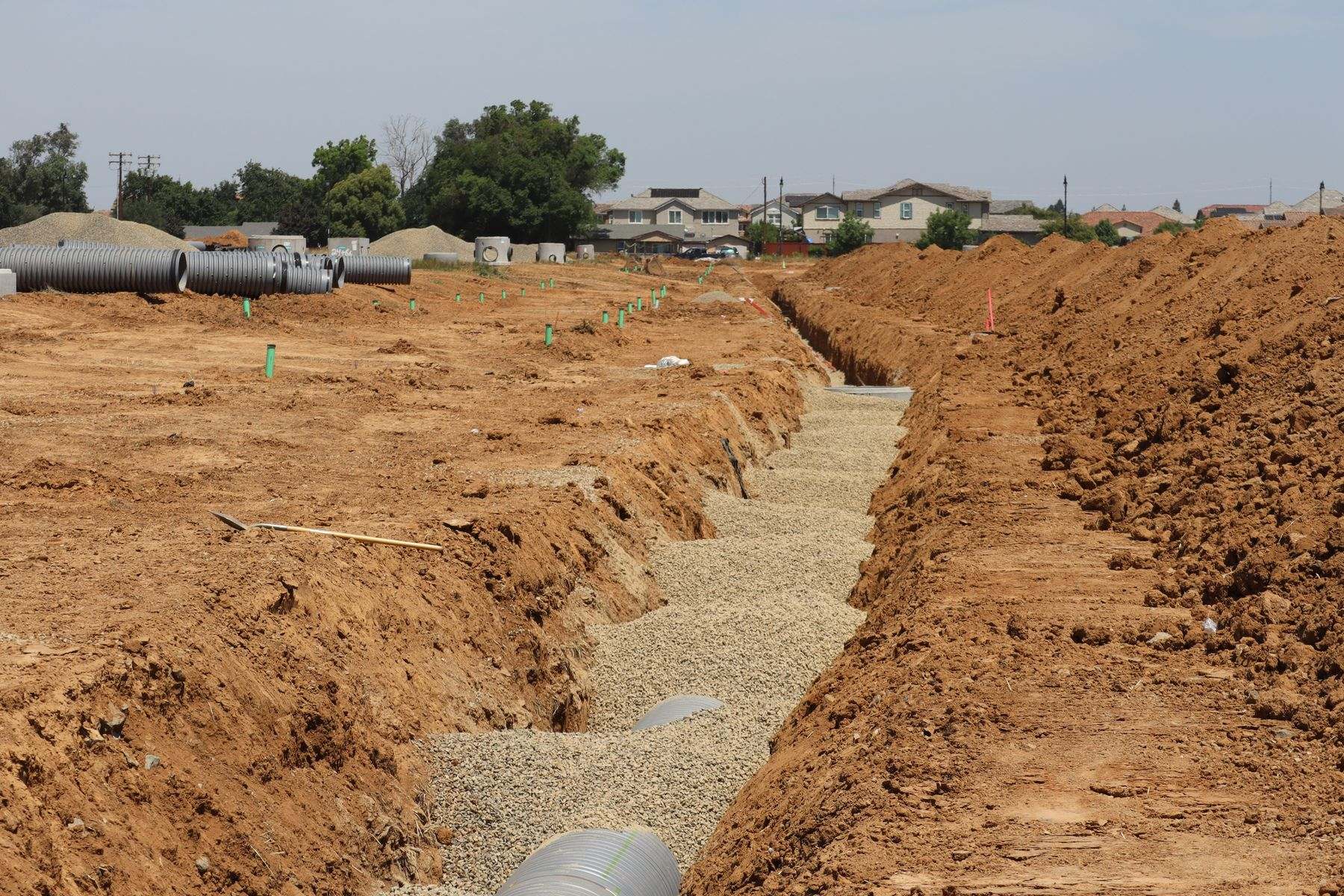

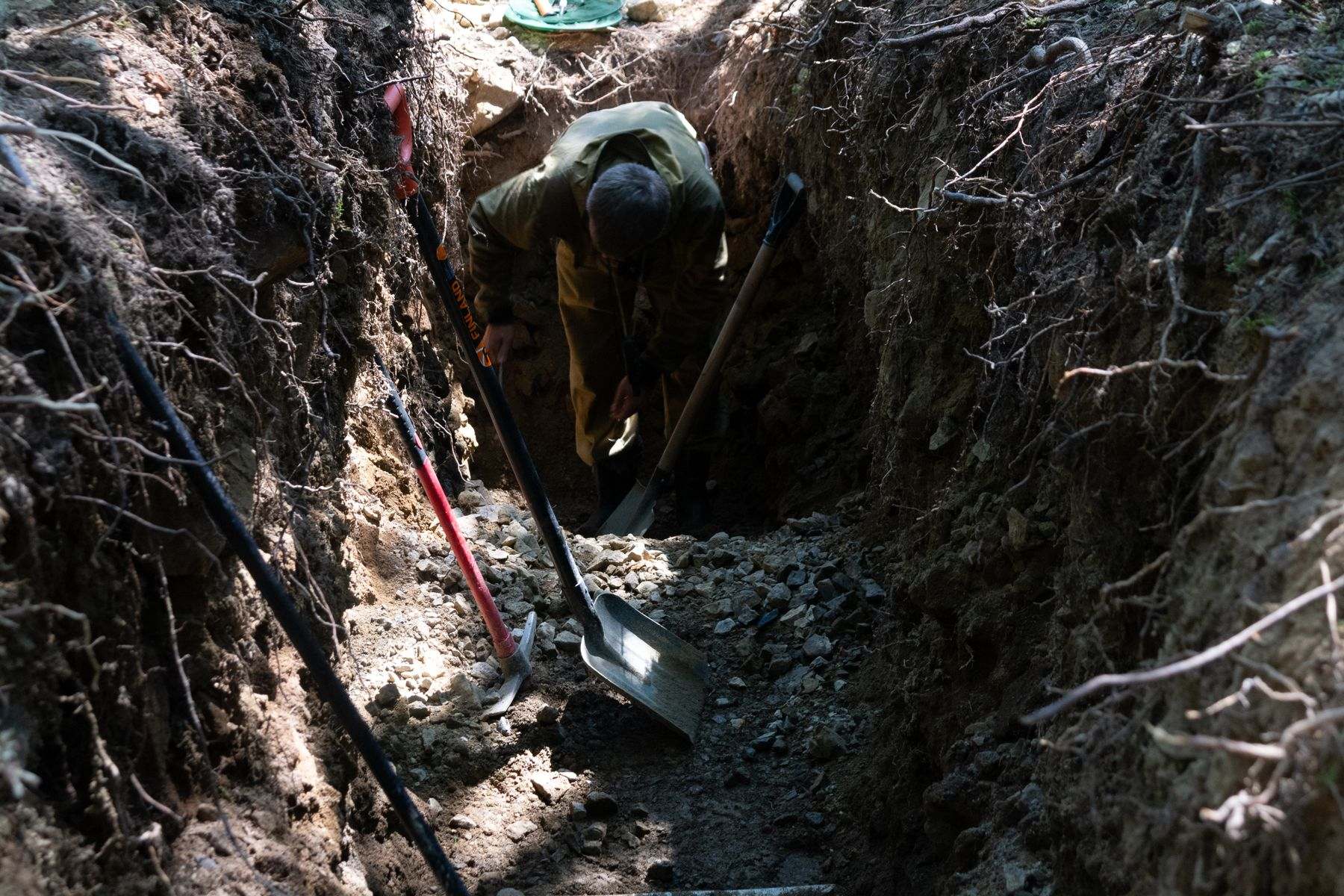

Trench or bore
Straightforward runs across open ground are trenched. Where the line has to pass under a driveway, walkway or landscaping, boring or pipe pulling can avoid cutting through it.
-
Lay and connect the line
The pipe is bedded at the required depth, kept apart from the sewer line, and connected at the meter side and at the building, with a main shutoff valve where it enters.
-
Pressure test and inspection
Before backfilling, the new line is pressure tested and left open for inspection where the permit requires it.
-
Backfill and clean up
The trench is backfilled and compacted, the work area is cleaned up, and water service is turned on through the new line.
Depth, Pressure and Code Details That Matter
Plumbing work in Oregon follows the Oregon Plumbing Specialty Code, enforced by the local building department. A few details decide whether a new line lasts:
- Depth: the line has to sit below the frost line and deep enough to be protected from surface damage.
- Separation from the sewer: water and sewer lines need separation so a sewer problem cannot contaminate the water supply.
- Pressure: where street pressure is above 80 psi, the plumbing code calls for a pressure reducing valve to protect joints, fixtures and appliances.
- Future locating: plastic pipe cannot be found with a metal detector, so a tracer wire is often laid with it so the line can be located later.
Pressure matters for the whole system, not just the new pipe. High pressure is one of the causes of leaks covered on our water leak detection page.
What Affects the Cost of a New Water Line
No two runs are the same, so the price is set after the site visit. The things that move it are:
- The length of the run from the meter to the building
- Open trench or directional boring
- What the line passes under: driveways, patios, trees
- Pipe material and diameter
- Soil conditions and burial depth
- Permit fees and how much restoration is needed
You get a clear quote after the site visit, before any digging starts.
Water Line Installation Around Albany
We install water lines in Albany and nearby towns, and our local pages cover water line repair in Millersburg, OR, water line repair in Tangent, OR and water line repair in Lebanon, OR. Rural properties across Linn and Benton counties often need longer runs to a shop, barn or second dwelling.
If the reason for a new line is a high water bill, it is worth confirming where the water is going first. A leak can be in the service line, in an irrigation line or under a concrete floor, where slab leak repair is the fix instead. Only a service line leak is solved by a new service line.
Planning a New Water Line?
Tell us where the meter is, where the water needs to go and what is in the way. We will walk the route, explain the options and give you a quote before any work begins.
Water Line Installation FAQs
Do I need a permit to install a new water line in Albany?
In most cases, yes. Installing or replacing a water service line is plumbing work that normally needs a permit and an inspection. The permit comes from the city or county building department that covers your address, and we confirm what applies before the work is scheduled.
How deep does a water line need to be buried in Oregon?
Deep enough to stay below the frost line and be protected from surface damage, with the required separation from the sewer line. The exact requirement is set by the plumbing code and the local building department, so it is confirmed as part of the permit rather than guessed.
What pipe is best for a water service line?
PEX and HDPE are common for residential service lines because they are flexible, need few joints on a long run and do not corrode. Copper is durable but costs more. The best choice depends on the length of the run, the soil, how the line will be installed and what the code allows.
How long does a new water line installation take?
Many residential installations are finished in one to two days. Long runs, boring under driveways or patios, and inspection scheduling can add time. You get a timeline after the site visit.
Who installs the water meter?
The water meter and the pipe from the street main to the meter belong to the water provider, which for most Albany addresses is the City of Albany. We install the private line from the meter to your building and can help you coordinate with the city if a new meter or connection is needed.
